Vyrtych Ex-Proof Lighting for Zone 1, 21 and for Zone 2, 22
Vyrtych offers a wide range of Ex-Proof LED luminaires for indoor- and outdoor applications. There is a choice in luminaires for Ex Zone 1, 21 and for Ex Zone 2, 22 with IP ratings from IP65 up to IP68.
The EXTRA-Ex-LED is an IP66 luminaire for ATEX Zone 1, 21. Dustproof luminaire EXTRA-Ex-LED with resistance against splashing water is determinated for lighting areas with danger of explosion. Luminaire is certified by FTZÚ Ostrava-Radvanice (certificate FTZÚ 16 ATEX 0167X). Also available with EM – Non-maintained emergency lighting (1,5h & 3h) function and MULTI – maintained emergency lighting (1.5h & 3h) function. EXTRA-Ex-LED, MULTI EXTRA-Ex-LED, EXTRA-Ex-LED-Em = Ex II 2G Ex eb mb op is IIC T4 Gb and Ex II 2D Ex tb op is IIIC T67°C Db.
The EXTRA-N-LED Ex is an IP66 luminaire for ATEX Zone 2, 22. Dustproof lighting fixture EXTRA-N-LED with splash water resistance is designed for lighting of areas with danger of explosion. The lighting fixture is certified by FTZU Ostrava-Radvanice (certificate type FTZU 16 ATEX 0102X). Also available with EM – Non-maintained emergency lighting (1,5h & 3h) function and MULTI – maintained emergency lighting (1.5h & 3h) function. EXTRA-N-LED, MULTIEXTRA-N-LED, EXTRA-N-LED-Em = EX II 3G Ex nR IIC T6 Gc and EX II 3D Ex tc IIIC T80°C Dc.
The EXTRA-N-LED-2/21 Ex is an IP66 luminaire for ATEX Zone 2, 21 and can be used also in Zone 22. Dustproof lighting fixture EXTRA-N-LED with splash water resistance is designed for lighting of areas with danger of explosion. The lighting fixture is certified by FTZU Ostrava-Radvanice (certificate type FTZU 24 ATEX 0020X). Also available with EM – Non-maintained emergency lighting (1,5h & 3h) function and MULTI – maintained emergency lighting (1.5h & 3h) function. EXTRA-N-LED, MULTIEXTRA-N-LED, EXTRA-N-LED-Em = EX II 3G Ex nR IIC T6 Gc and II 2D Ex tb IIIC T80°C Db.
The PITBUL-Ex-LED is an IP65 luminaire for ATEX Zone 1, 21. Is extremely robust, impact resistant IK10 + 20J. Dustproof LED luminaire series PITBUL-Ex-LED with resistance against of splashing water is designed for lighting areas with danger of explosion. Luminaire is certified by FTZÚ Ostrava-Radvanice (certificate FTZÚ 16 ATEX 0089X). The luminaire has a white painted metal sheet housing and an Opal tempered safety glass. Can also be ordered with a Stainless Steel AISI304 and AISI316 body. Also available with EM – Non-maintained emergency lighting (1,5h & 3h) function and MULTI – maintained emergency lighting (1.5h & 3h) function. PITBUL–Ex-LED, MULTIPITBUL-Ex-LED, PITBUL-Ex-LED-Em = II 2G Ex db eb mb op is IIC T4 Gb and II 2D Ex tb op is IIIC T 67°C Db.
The PITBUL-N-LED Ex is an IP65 luminaire for ATEX Zone 2, 22. Is extremely robust, impact resistant IK10 + 20J. Dustproof lighting fixture PITBUL-N-LED with splash water resistance is designed for lighting of areas with danger of explosion. The lighting fixture is certified by FTZU Ostrava-Radvanice (certificate type FTZU 17 ATEX 0129X). The luminaire has a white painted metal sheet housing and an Opal tempered safety glass. Can also be ordered with a Stainless Steel AISI304 and AISI316 body. Also available with EM – Non-maintained emergency lighting (1,5h & 3h) function and MULTI – maintained emergency lighting (1.5h & 3h) function. PITBUL-N-LED, MULTIPITBULL-N-LED, PITBULL-N-LED-Em = Ex II 3G Ex nR IIC T6 Gc and Ex II 3D Ex tc IIIC T68°C Dc.
The SALUKA-N-LED Ex is an IP66 and IK07 luminaire for ATEX Zone 2, 22. Dustproof lighting fixture SALUKA-N-LED with splash water resistance designed for lighting of areas with danger of explosion. The lighting fixture is certified by FTZU Ostrava-Radvanice (certificate type FTZU 17 ATEX 0027X). The luminaire has a white painted metal sheet housing and an Opal tempered safety glass. Can also be ordered with a Stainless Steel AISI304 and AISI316 body. Also available with EM – Non-maintained emergency lighting (1,5h & 3h) function and MULTI – maintained emergency lighting (1.5h & 3h) function. SALUKA-N-LED, MULTISALUKA-N-LED, SALUKA-N-LED-Em = EX II 3G Ex nR IIC T6 Gc and EX II 3D Ex tc IIIC T80°C Dc.

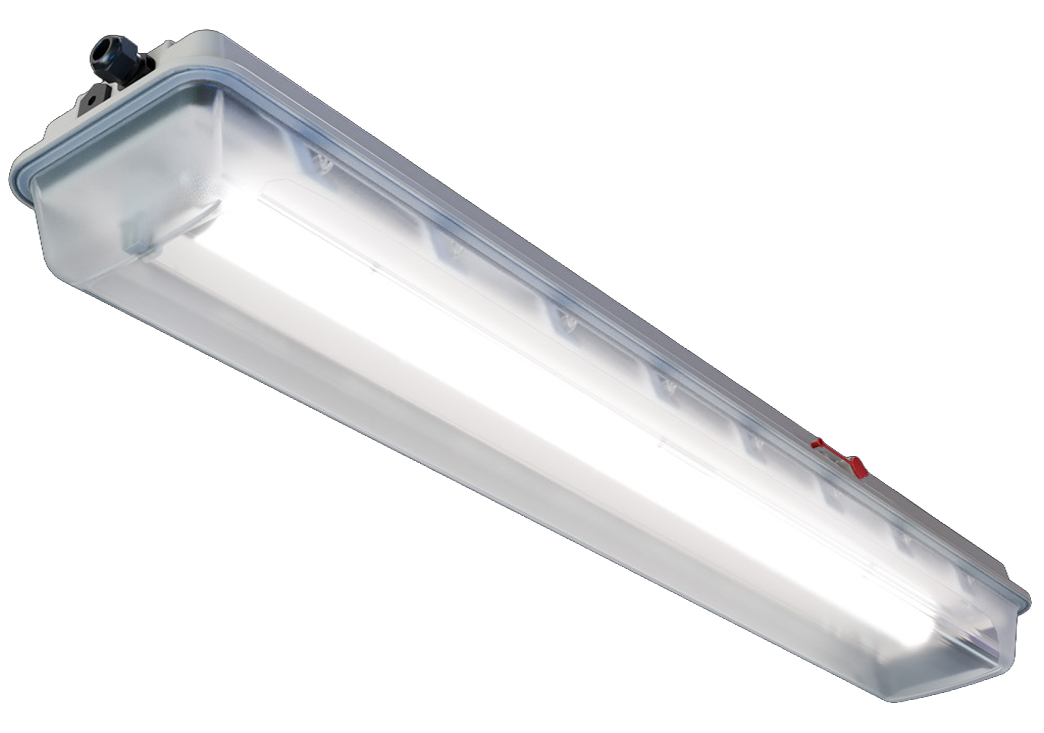

The EXTEND-Ex-P-LED is an IP66 and IK08 luminiare for ATEX Zone 1, 21. Dustproof lighting fixture EXTEND-Ex-P-LED with splash water resistance for lighting of areas with danger of explosion. The lighting fixture is certified by FTZU Ostrava-Radvanice (certificate type FTZU 16 ATEX 0080X). The luminaire has a Plastic material GRP (Polyester filled with fibreglass) housing and a clear Polycarbonate cover. Also available with EM – Non-maintained emergency lighting (1,5h & 3h) function and MULTI – maintained emergency lighting (1.5h & 3h) function. Certification: MULTI/EXTEND-Ex-P-LED, EXTEND-Ex-P-LED-WOD, EXTEND-Ex-P-LED-Em = II 2G Ex db eb mb op is IIC T4 Gb and II Ex tb op is IIIC T71°C Db.
The AQUA-70-Ex-LED is an IP66/IP68 and IK10 luminaire for ATEX Zone 1, 21. Dustproof and watertight lighting fixture AQUA-70 Ex-LED for lighting of areas with danger of explosion. The lighting fixture is certified by FTZU Ostrava-Radvanice (certificate type FTZU 17 ATEX 0052X). The extreme impact resistant housing (IK10) is made from clear polycarbonate with a wall thickness of 4mm. Fastening can be by using polycarbonate plastic or stainless steel mounting brackets or suspension mounting by means of cable suspenders. The mounting brackets or suspenders must be ordered separatly. The light fixtures are available with an electric disconnector plug or with a cable gland. Certification: AQUA-70-Ex LED-D: II 2G Ex db eb mb op is IIC T4 Gb and II 2D Ex tb op is IIIC T62°C Db. AQUA-70-Ex-LED-WOD: II 2G Ex eb mb op is IIC T4 Gb and II 2D Ex tb op is IIIC T62°C Db
