The SCANGRIP LED Worklights range contains the NOVA series and STAR

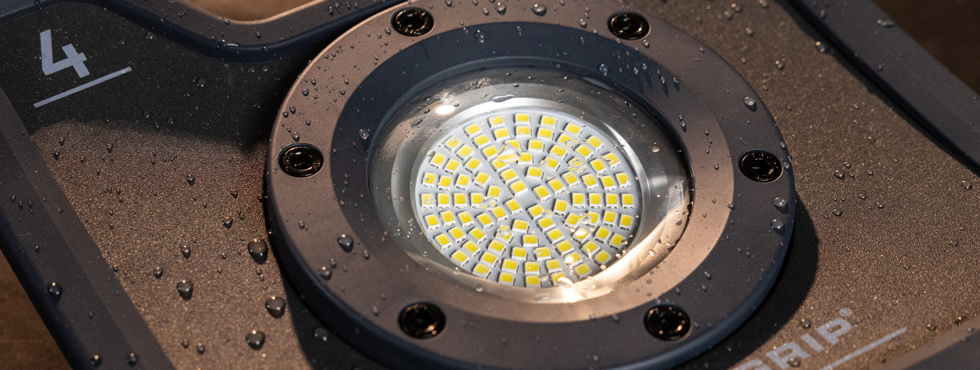

The NOVA R, NOVA K and NOVA C+R are extremely sturdy and powerful worklights available with a powerful illuminiation up to 10.000 lumen. The NOVA K type lamps are to use with the supplied 5 meter power cable for operating voltage of 100-240V 50/60Hz. The NOVA R is a rechargeable extremely compact worklight and the NOVA C+R type of lamps are DUAL combination of using with the build-in battery or with the supplied power cable. All the NOVA worklights can be combined with the SCANGRIP Accessories as a TRIPOT, MAGNETIC BRACKET, WHEEL STAND and SCAFFOLDING BRACKET which ensure to have light where is needed. All NOVA lamps are IP67 and can be used for indoor and outdoor applications as well. All NOVA lamps provides an bright light 6000K with a CRI RA>80. The latest series is the SCANGRIP CONNECT to use in combination with CAS system batteries or other 18V / 20V batteries in combination with a Scangrip connector.

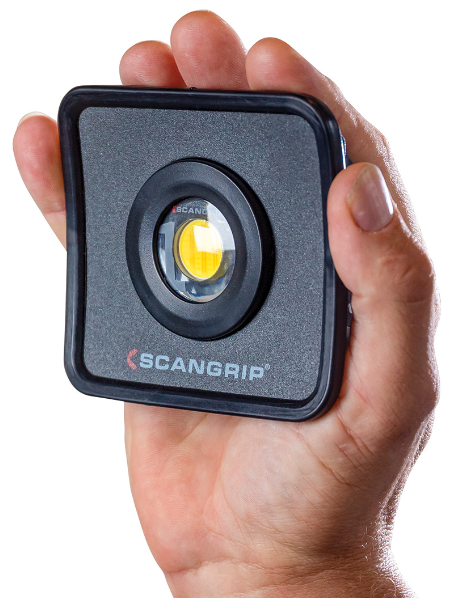

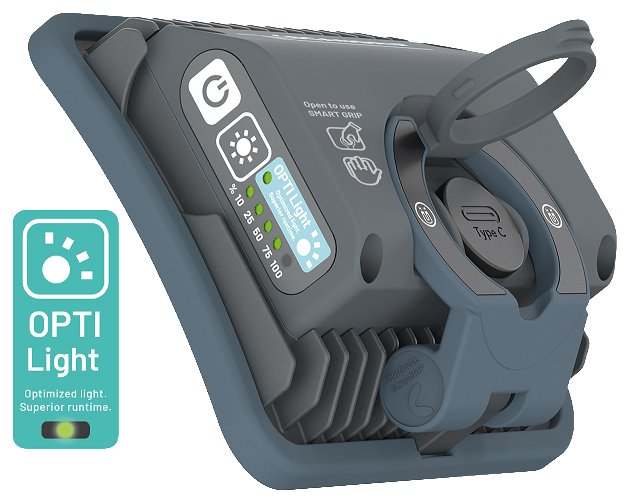

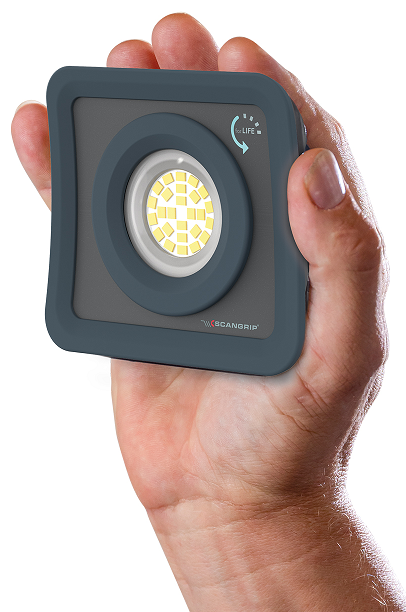

The Scangrip NOVA MINI is a handy compact and sturdy rechargeable worklight equiped with a 100-1.000 lumen (5 steps dimmable) COB LED technique. The lamp has a internal magnetic bracket. The lamp comes with an USB charge cable.
Article number Scangrip 03.6010 RMN Article number 90SCAN06010

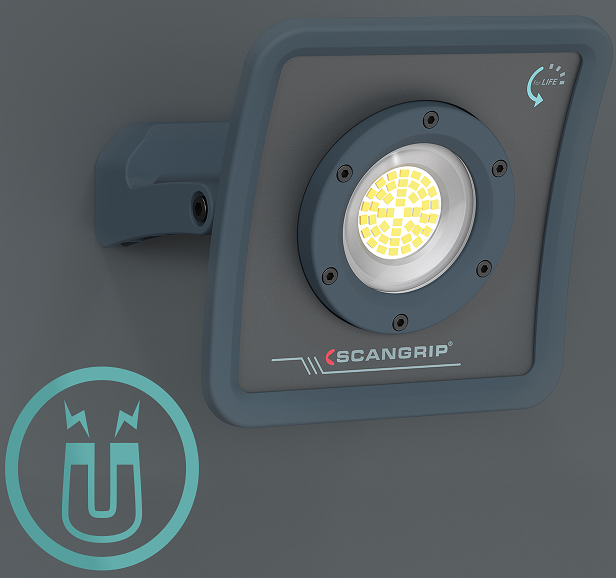

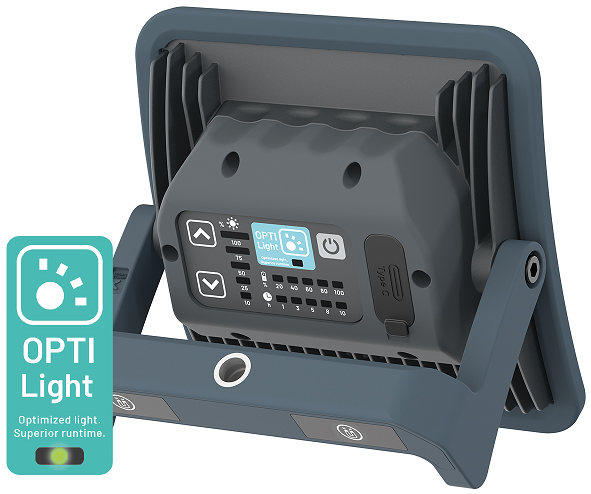

The Scangrip NOVA R is a handy compact and sturdy worklight equiped with a 200-2.000 lumen (5 steps dimmable) COB LED technique. The lamp has a internal magnetic bracket and a built-in power bank. The lamp comes with a charger and USB cable.
Article number Scangrip 03.5456 RMN Article number 90SCAN035456

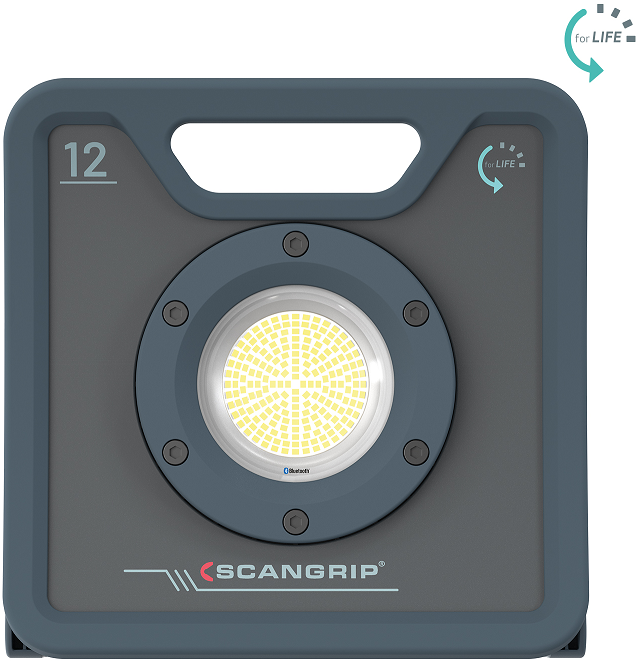

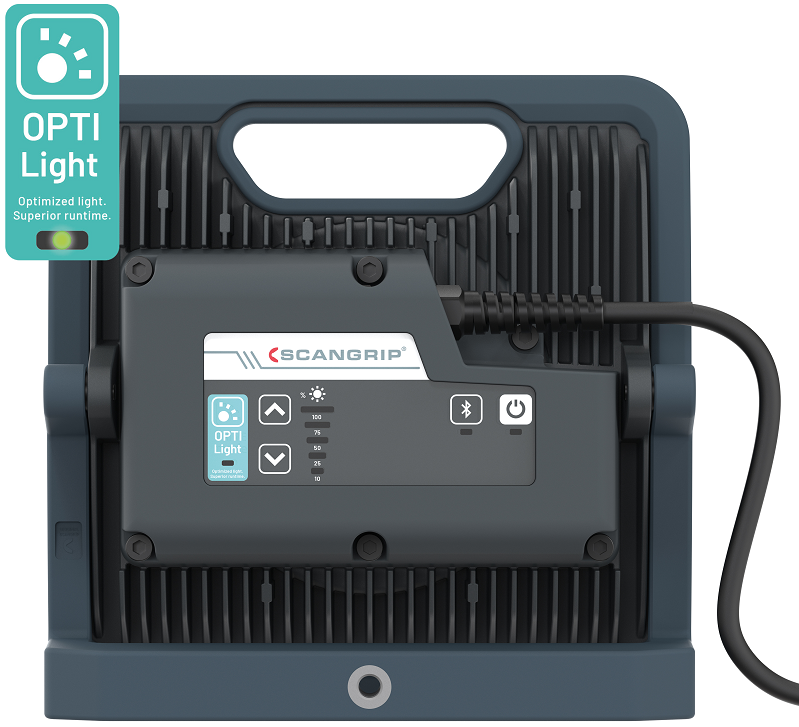

The Scangrip NOVA K series contains the NOVA 4K (4.000 lumen), NOVA 6K (6.000 lumen) and NOVA 12K (12.000 lumen). The corded lamp comes with a 5 meter power cable and can be used for an operating voltage of 100-240V 50/60Hz. The lamps are in 5 steps dimmable to provide the desired amount of light on the workspace. With the universal bracket the lamp can easily be positioned in the right angle on the floor or used as a hanger or mounted on the SCANGRIP Accessories. The NOVA 12K has as extra function the possibility of wireless light control Smartphone.
Scangrip Article number 03.5440 RMN Article number 90SCAN035440 type NOVA 4K
Scangrip Article number 03.5442 RMN Article number 90SCAN035442 type NOVA 6K
Scangrip Article number 03.5444 RMN Article number 90SCAN035444 type NOVA 12K

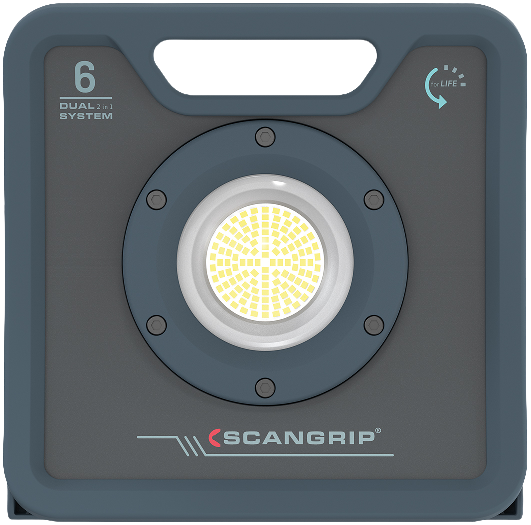

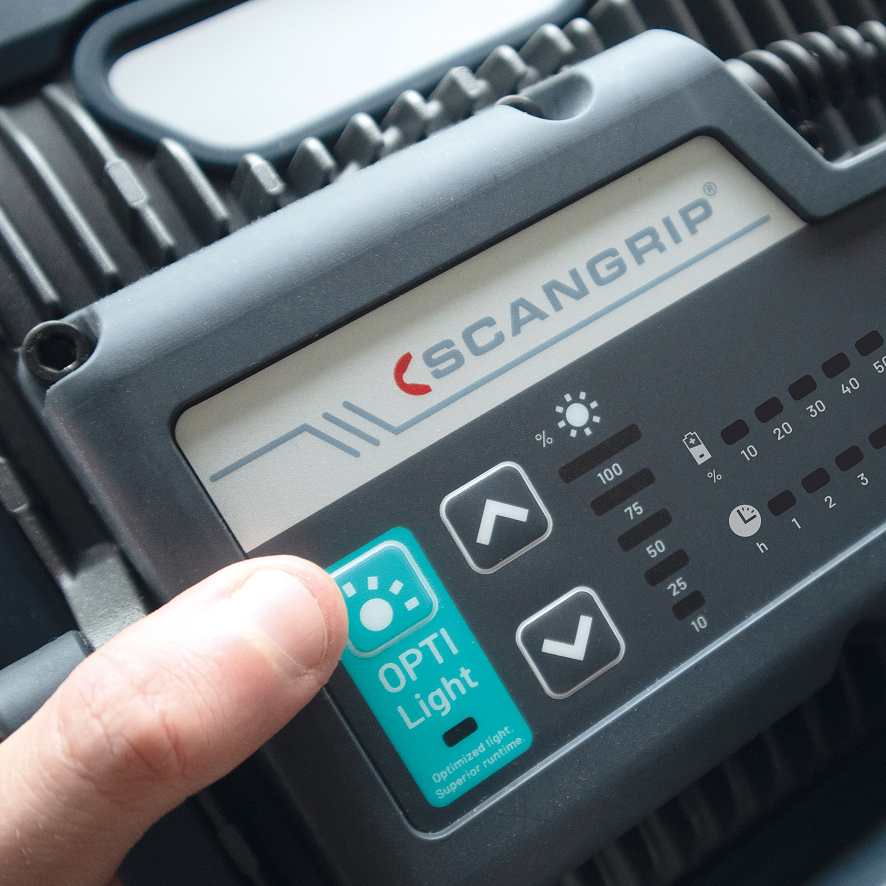

The Scangrip NOVA C+R series contains the NOVA 4K C+R (4.000 lumen), NOVA 6K C+R (6.000 lumen). The lamps have a build-in 11.1V Li-ion battery and comes with a charger and 5 meter cable. The lamps can be used on with the power cable and charge at the same time or used without the cable which makes it more flexible on places where no access to power is available. With the universal bracket the lamp can easily be positioned in the right angle on the floor or used as a hanger or mounted on the SCANGRIP Accessories. The user friendly display shows both battery capacity and remaining operating time and even illumination percentage.
Scangrip Article number 03.5441 RMN Article number 90SCAN035441 type NOVA 4K C+R
Scangrip Article number 03.5443 RMN Article number 90SCAN035443 type NOVA 6K C+R

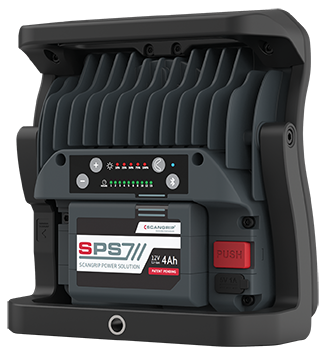

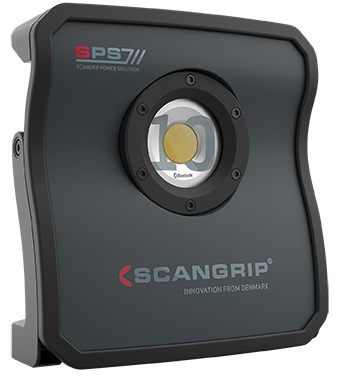

The Scangrip NOVA SPS LED worklight. It is the world’s most powerful and sturdy light with a new developed SPS battery system providing extremely high light output and outstanding flexibility. The lamps are in 5 steps dimmable via the display at the back of the lamp (also via Bluetooth). This display also shows battery capacity and remaining operating time. There is unlimited availability to light thanks to the new patented SCANGRIP POWER SOLUTION. The lamp has a built-in power bank and an integrated backup function prevents you from being without light at any time. All NOVA SPS LED worklights are IP67 and can be used for indoor as outdoor applications. Each lamp comes with a charger and battery. Extra batteries and chargers are available. Batteries can easily be exchanged during charging. For extra flexibility the SCANGRIP Accessories can be used.
Scangrip Article number 03.6000 RMN Article number 90SCAN036000 NOVA 4 SPS 4.000 lumen
Scangrip Article number 03.6001 RMN Article number 90SCAN036001 NOVA 6 SPS 6.000 lumen
Scangrip Article number 03.6002 RMN Article number 90SCAN036002 NOVA 10 SPS 10.000 lumen

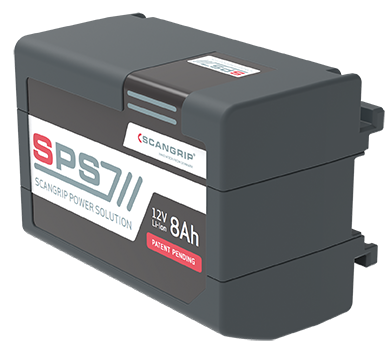

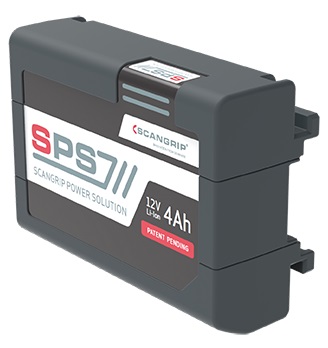

The Scangrip SPS battery system is a separate battery, slides in a special slot at the back of the lamp. Available in two types 11.1V 4.000mAh Li-ion for the NOVA 4 SPS and 11.1V 8.000mAh for the NOVA 6 SPS and NOVA 10 SPS.
Scangrip Article number 03.6003 RMN Article number 90SCAN036003 Battery 11.1V 4.000mAh
Scangrip Article number 03.6004 RMN Article number 90SCAN036004 Battery 11.1V 8.000mAh

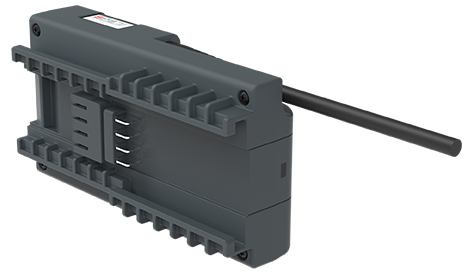

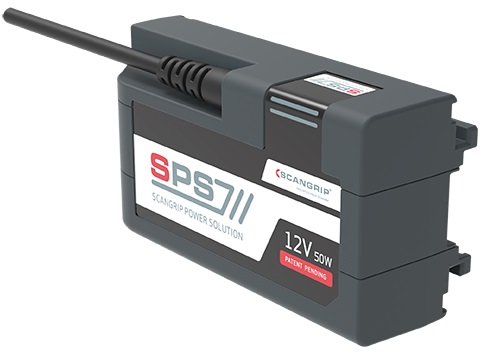

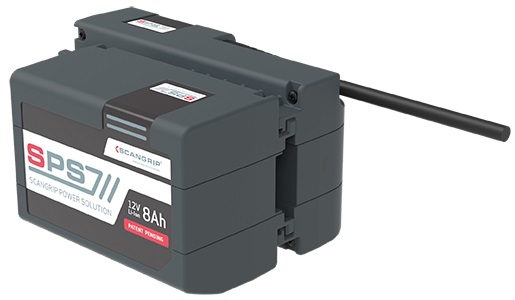

The Scangrip SPS battery chargers are available in 3 different types, 35W for the NOVA SDS 4, 50W for the NOVA 6 SPS and 85W for the NOVA 10 SPS. Charger input voltage is 100-240V 50/60Hz. The chargers are IP67/IK07 protected and can be use indoor and outdoor as well. The chargers are equiped with a 5 meter power cable.
Scangrip Article number 03.6006 RMN Article number 90SCAN036006 Battery charger 35W for SPS 4
Scangrip Article number 03.6007 RMN Article number 90SCAN036007 Battery charger 50W for SPS 6
Scangrip Article number 03.6008 RMN Article number 90SCAN036008 Battery charger 85W for SPS 10
SCANGRIP CONNECT
Highly efficient LED Work Lights to use in combination with the CAS Sytem batteries. The Work Lights comes without a battery and without a charger. It is a very flexible system due to the CAS battery connection. All brands of 18V CAS batteries can be used. There is also a CONNECT DIRECT Power Supply available to change your battery lamp into a corded lamp 100-240Vac 50/60Hz. New are the SCANGRIP CONNECTORS which makes it possible to use 18V batteries from different tool manufacturers on the CONNECT Work Lights. Contact our product specialist for which brand they are available.
Scangrip Article number 03.6100C RMN Article number 90SCAN036100 NOVA CONNECT 2 2.000 lumen
Scangrip Article number 03.6101C RMN Article number 90SCAN036101 NOVA CONNECT 4 4.000 lumen
Scangrip Article number 03.6102C RMN Article number 90SCAN036102 NOVA CONNECT 10 10.000 lumen
SCANGRIP CONNECTORS
Use your 18V tool battery in the SCANGRIP CONNECT Work Light (multiple brands available)
The Scangrip STAR is an extreme powerful worklight with a light output up to 1.000 lumen. The lamp has an ergonomical handle and can be used as a handlamp. The handle contains a powerful built-in magnet to mount it in any direction to a steel magnetic surface. The lamp is rechargeable and has a battery runtime up to 5 hours. As extra the lamp has an internal power bank. This sturdy lamp can also be combined with the SCANGRIP Accessories such as the Tripot.
Scangrip Article number 03.5620 RMN Article number 90SCAN035620
