Jukolux ALX ATEX LED Luminaires

Jukolux ALX an unique ATEX luminaire

JUKO ALX is an unique ATEX luminaire manufactured in Finland by Jukolux Oy. It was designed together with industry professionals and clients, to guarantee its functionality even in the most challenging environments. The luminaire is built upon two component-certified modules, so multiple product variations and possible updates are very easy to implement. Jukolux also designed a reset function if faulty situations do occur due to voltage/current spikes or thermal spikes. This makes the maintanence of our luminaire even easier. The luminaire is suitable for use in Zone 1-21 and 2-22. IP rating is IP66.

JUKO ALX is the choice of a true professional.

JUKO ALX IN GAS ENVIRONMENTS Ex eb mb op is IIC TX Gb

IIC classifications makes it possible to install the JUKO ALX to all the gas environments, even the ones with hydrogen and other dangerous gasses.

IIA: Propane and similar gasses, IIB: Ethylene and similar gasses, IIC: Most dangerous gasses like hydrogen

JUKO ALX IN DUSTY ENVIRONMENTS Ex tb op is IIIC T85º Db

Applicable for all dust environments

IIIA: Combustible Fibres and flyings, IIIB: Non-Conductive dusts, IIIC – JUKO ALX: Conductive dusts

PROTECT AGAINST OPTICAL RADIATION

Ex eb mb op is IIC T6 Gb – Ex tb op is IIIC T85ºC Db

LED technology has introduced new challenges when considering lighting in EX environments. The efficiency of light output from “old technology luminaires” has remained almost constant for many years. However, LED technology can improve the efficiency of the light source almost every year. This, in itself, creates a unique risk factor for EX environments. It is crucial to check whether the luminaire is equipped with the “Ex op is” marking. This marking simply means that the optical radiation from the light source has been considered in the luminaire’s design and certification.

All Jukolux products comply with the requirements of the standard 60079-28 “protection against optical radiation.”

Safety and functionality for ATEX environments

High lumen output, long lifespan and functionality for all environments

Optimized heat management: Extrusion profile designed for efficient heat transfer

High power LED’s: Robust, secure and long lasting

Own power supply: Minimizing the risk, maximizing the functionality

Customizable: Modular structure

Fully certified: ATEX and IECEx certified

Made in Finland: Finnish craftmanship

Jukolux – JUKO LED-4000Ex

Efficient, long lasting and reliable. High lumen output with robust structure and “op is” protection, Jukolux own LED Module designed for ATEX environments. Component certified.

Jukolux – JUKO PU150Ex

Designed to work in all environments, Faulty situations can be reseted, Long lasting, Jukolux own LED Driver for ATEX environments. Component certified.

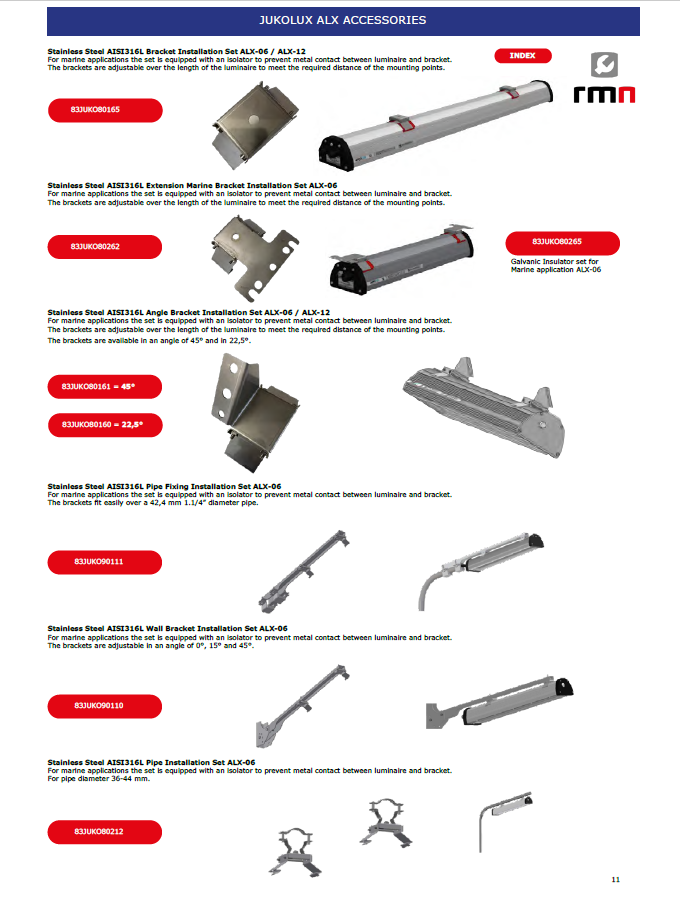

Easy mounting
