Diana Leuchten Surface Mount LED Lights
Surface-mounted luminaires from the Q40 series: the new LED masterpiece!
Applications:
Machining centers, CNC machines, Lathes, Printing machines, Erosion machines, Damp room lighting, Surface grinding machines, Milling machines, Track building machines, Woodworking machines, Industrial washing machines, Cold rooms, Plastics processing, Machine lighting, Machine room lighting, Metalworking, Micro precision machines, Polishing machines, Pool lighting, Production equipment, High pollution test benches, Railway, Switch cabinets, Grinding machines, Cabinet lighting, Special vehicles, Special machines, Injection molding machines, Punching automation, Textile machines, Tunnel lighting, Packaging machines, Showcase lighting, Machine tools.
Industries:
Agriculture, plant engineering, automation, automotive, printing, electronics, electrical engineering, wood industry, industry, industrial image processing, aviation, mechanical engineering, medicine, quality assurance, railway, space travel, robotics, sa, special mechanical engineering, textile industry, transport & logistics, traffic, packaging industry.

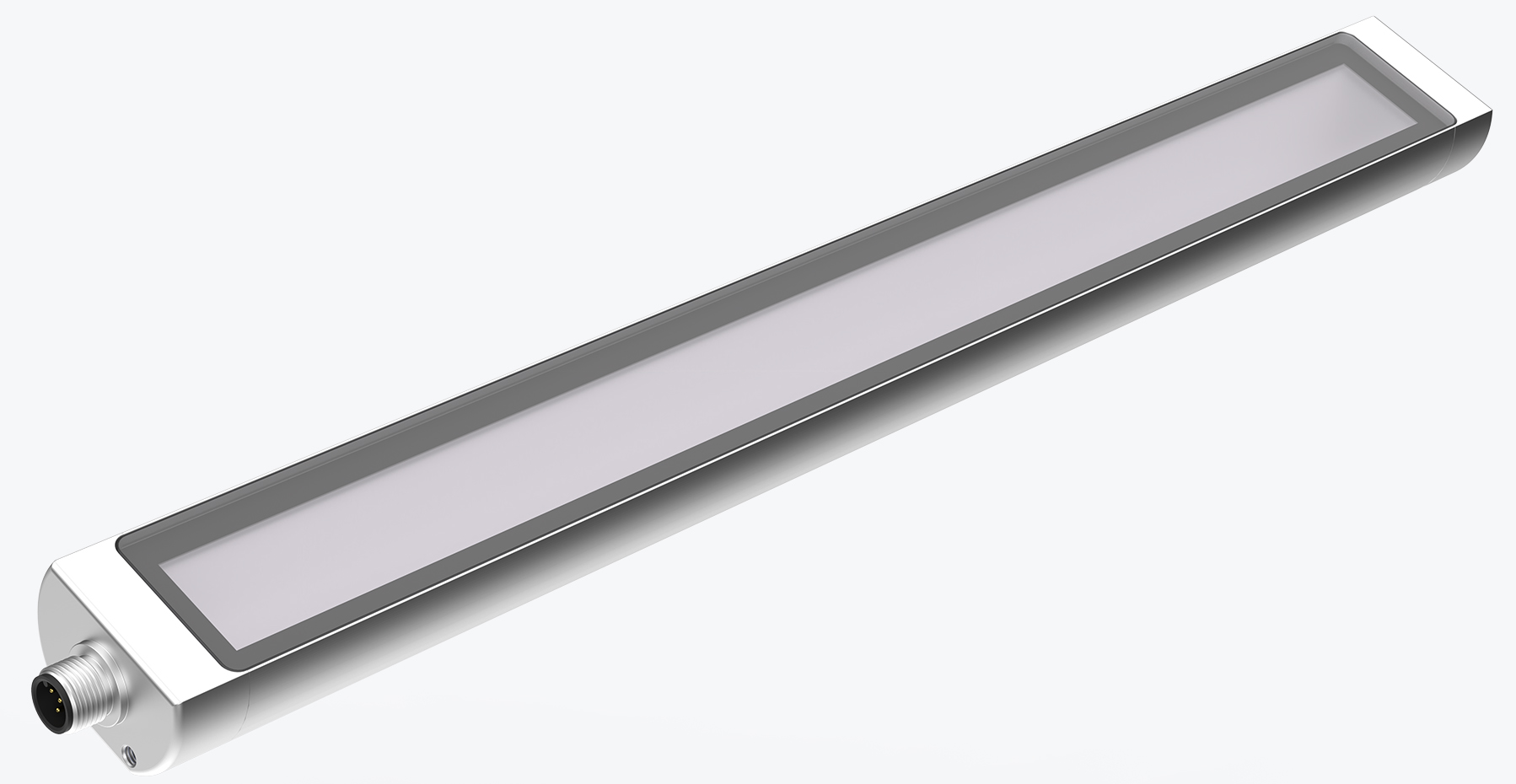

Diana Leuchten Q40 series consist the Q40, Q40-C & Q40-D
Hi quality surface mounted light that can with it’s optional mounting bracket set easy adjusted in many angles to provide light where needed the most. Light beam angle 100°. Available in 6 different lengths from 190 mm up to 1040 mm. High protection IP67 class III risk group 0. Available as non dimmable version (Q40), dimmable version (Q40-D) and dimmable version via a smartBox (Q40-C). Standard light colour 5.000K. Lifetime >60.000 hour. Material Anodized Aluminium with Tempered float glass.
Accessories:
Many different connection cables available. Standard lengths of 2, 5 and 10 mtr. With straight connector plug or angled connector plug.
SmartBOX Q40-C:
With the smartBOX you can configure the variants of the Q40-C surface-mounted light yourself. A soft on/off can be set and the light output can be dimmed in five levels. Settings remain saved in the light. One smartBOX can therefore be used for several Q40-C lights.
Power Supply:
Power comes via a plugged power supply or a DIN Rail mounted power supply.
